LoRa Irrigation Controller – Turbine or Solar Panel

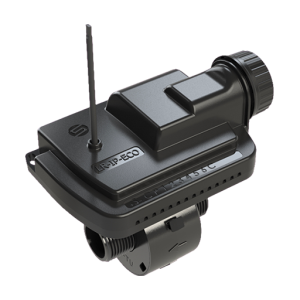

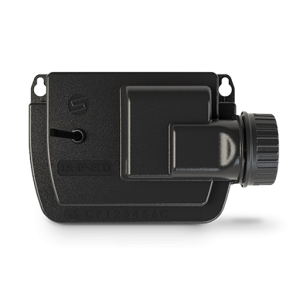

The LR-IP-ECO is a waterproof, battery-powered Bluetooth and LoRa irrigation controller capable of sequentially programming 9V solenoid valves. The turbine and solar panel are designed to recharge the module’s internal battery to extend the life of the 9V battery. Combined with a Wi-Fi or 4G gateway, it can be controlled remotely using the MySOLEM application and platform.

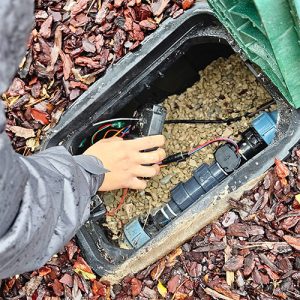

Install without pulling cables or digging trenches.
Built-in flowmeter by adding the turbine option.

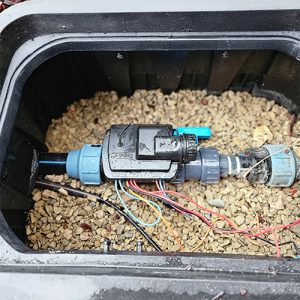

By combining the controller with the turbine, optimize the space in your valve box.
Add turbine or solar charging to extend 9V battery life.
Automatically adjust the programming based on weather forecasts.
Recharge the internal battery using solar power.
Long-lasting product ideal for outdoor use. IP68 Certified.
1/2/4/6 stations
1 Rain sensor input
or water meter with pulse sensor (max.499Hz)
or pressure switch connection
Master valve connection
Max. Distance LR-IP-ECO to 9V solenoid: 100 ft
Operating temperature: -4°F to 140°F
ø Turbine: 1″ or solar panel
9V Alkaline battery (6LR61 or 6AM6)
Bluetooth Smart 4.0 Low Energy
Bluetooth range: 33 ft
Communication using LoRa™ radio signal
Remote access via WiFi or 4G gateway
IP68: 100% Waterproof
Permanent programming save
Tubine
Battery charging and water meter function: >0.8 GPM
Maximum allowed flow rate: 13 GPM
Maximum flow rate before charge current regulation: 9.5 GPM
5.5 in (W) x 3.5 in (H) x 2.2 in (D)
