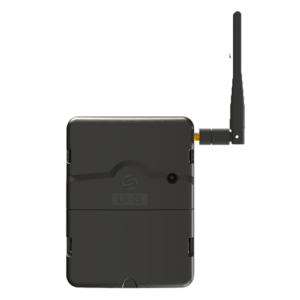

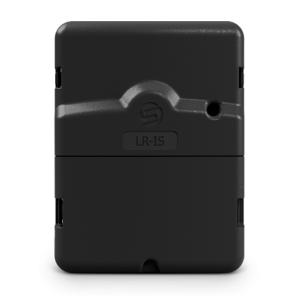

LoRa Irrigation Controller

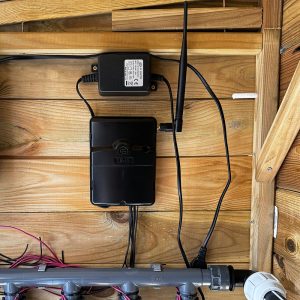

The LR-IS is an AC-powered, Bluetooth and LoRa irrigation controller able to sequentially schedule 24V solenoid valves. It is ideal for installations located in equipment rooms. It can be remotely controlled from anywhere when paired with a WiFi or 4G gateway.
Connected to a Wi-Fi or 4G gateway, program the LR-IP from anywhere via the app or platform.
Add a water meter to detect leaks or abnormal water usage.
Automatically adjust the programming based on weather forecasts.
Connect a pressure switch, set your threshold to monitor the status of your valve.
2/4/6/9/12 stations
1 Rain sensor input
or water meter with pulse sensor (max.499Hz)
or pressure switch connection
Electrical connection terminal block
Master valve connection
24V solenoid connection
Operating temperature: –4 to 104 °F
Power supply: Input: 120V – 60Hz / Output: 24VAC
Max. consumption: 0.75 A (18VA) 4kV surge protection
Bluetooth® Smart 4.0 Low Energy
LoRa™ radio communication
Remote access via WiFi or 4G gateway
Permanent programming backup
2/4/6 stations:
4.3 × 5.7 × 1.4 in (W × H × D)
9/12 stations:
6.3 × 5.7 × 1.7 in (W × H × D)
