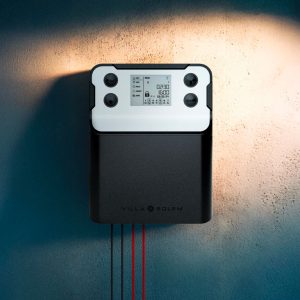

WiFi Outdoor Irrigation Controller
The VILLA is an AC-powered indoor Bluetooth® watering controller that connects directly to WiFi. It features a large display and buttons for easy use. It can program 24VAC solenoid valves sequentially.
Integrated transformer with protective cover against rain, UV, and vandalism.
Connects directly to your existing Wi-Fi network.
Wago-type connection terminals, for quick & easy installation. No need for tools.
Use either the display & buttons, or the app using the programming assistant.
Add a water meter to detect leaks or abnormal water usage.
Automatically adjust the programming based on weather forecasts.
Connect a pressure switch, set your threshold to monitor the status of your valve.
4/6/9/12 stations
1 water meter or rain sensor or pressure switch input
To set up indoor or in a sheltered place
Electrical connection terminals
Master valve connection or pump start relay
24 VAC solenoid connection
Operating temperature: from –4 to 104 °F
Integrated transformer: Input: 120V – 60Hz /
Output: 24VAC
Max. Consumption: 0,75 A (18VA)
Surge protection to 4 kV
Bluetooth® Smart 4.0 Low Energy
Wi-Fi 802.11 b/g/n, WPA2-PSK, WPA, WEP
Permanent programming save
Without case:
7.1 × 9.3 × 3.3 in (W x H x D)

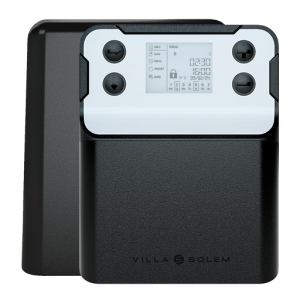

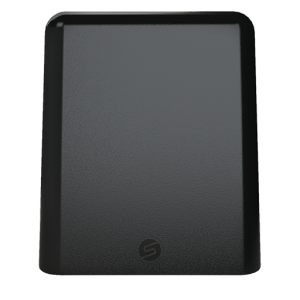

With case:
8.1 × 8.4 × 3.5 in (W x H x D)
